Black 100W LED UFO LED High Bay Light High Efficiency For Industrial Lighting
Product Details:
| Place of Origin: | China |
| Brand Name: | LYHsolar Lighting |
| Certification: | CE RoHS |
| Model Number: | LYH-HBL-100W |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100unit |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | 1pc per carton; 4.0Kg; Carton size: 390x190x395mm; 887pcs for 20' container; 1911pcs for 40' container; |
| Delivery Time: | 25-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10,000pcs per month |
|
Detail Information |
|||
| Type: | LED High Bay Light Industrial | Power: | 100W |
|---|---|---|---|
| Input Voltage: | AC100-270V / 50-60 Hz | Power Supply: | Meanwell HBG Or Meanwell ELG |
| Power Factor: | >0.92 | LED Chips: | Philip SMD3030 |
| Lighting Efficiency: | 150Lm/W / 15,000Lm | CCT: | 3000K To 6000K Available |
| CRI: | >80Ra | Product Dimension: | φ335x160mm |
| Materials: | Dia Casting AL + PC Lens Or Tempered Glass | Finish Color: | Black |
| High Light: | Black 100W LED UFO LED High Bay Light,aluminum 100W LED UFO LED High Bay Light,industrial 100w ufo high bay light |
||
Product Description
100W Black LED UFO LED High Bay Light High Efficiency For Industrial Lighting
100W LED UFO High Bay Light Quick Details:
● 100W LED high bay light with high lighting efficiency
● Input voltage AC 100-270V / 50-60Hz, fit for most countries
● Meanwell driver, Philip SMD3030 chips, high efficiency and stability
● High lighting efficiency150Lm/W, total 15,000Lm output
● IP65 waterproof, surface treatment is powder coating
● PC lens or tempered glass cover, beam angle 80°/90°/110°
● CCT from 3000K to 6000K are available, more choices
● Product original designed, round type. More installation type choice
● Customized aluminum product card is available
● 5 years warranty, free of maintenance
100W LED UFO High Bay Light Product Features:
This 100W LED high bay light, designed as a round plate. Dia-casting materials as the lamp housing, one-step forming with good heat dissipation. It is like general round high bay light on the market, UFO shape design. For kind of different installations, this lamp could be installed by hanging, mounted, all installation accessories could be provided. To meet customer's difererent requests, there is PC lens or Tempered glass cover for chosen, or anti-glare roof is available. With round shape, its package for transportation would be simple and stable, the most important is the reasnable package can save transportation cost for customers. 5 years warranty without maintenance, it is a good choice for industrial lighting for your factory, warehous etc.

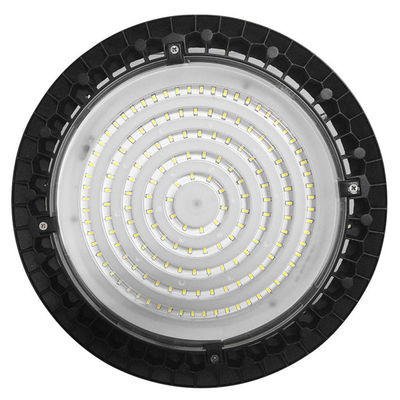

There are total 184pcs of high efficiency LED SMD3030 chips as the lighting source, whole lamp lumen output can reach 150Lm/W, total 15,000Lm output. Beam angles choice are 80°/90°/110°, customers can choose the right beam angle for their industrial lighting applications. Except the PC lens, we also provide the tempered glass cover with 120° or provide the anti-glare roof with beam angle 90° for choice. If you have any other requests, please feel free to contact us for more details.
Power supply we chosen for this round high bay light is Meanwell Driver HBG series or ELG series. CE RoHS standard, ETL and DLC approval. Over 0.92 poer factor, it will have better performance on energy-saving. Make sure all lamp could work safety and well for years.
This UFO high bay light, lamp housing materials are dia-casting aluminum with one-step forming, better heat radiation, strong lamp structure. Kinds of installation choice like hanging installation, bracket installation, pole installation etc, can meet customers different installation requests. All lamps would be do aging test at least 8 hours before delivery, quality controlled well in our assemble line. IES file for Dialux design is available, please contact us to discuss more. Thank you very much!
100W LED UFO High Bay Light Specification:
|
Product Code |
LYH-HBL-100W |
|
Power |
100W |
|
Input Voltage |
AC100-270V |
|
Power Supply |
Meanwell HBG or Meanwell ELG |
|
LED Chip |
Philip SMD3030 |
|
Beam Angle |
80°/90°/110° |
|
Lighting Efficiency |
150Lm/W total 15,000Lm |
|
Power Factor |
>0.92 |
|
CCT |
From 3000K to 6000K |
|
CRI |
>80Ra |
|
IP Class |
IP65 |
|
IK Class |
IK08 |
|
Warranty |
5 years |
|
Package |
1pc per carton / carton size: 390x190x395mm |
|
Applications |
Factory Lighting, Warehouse Lighting |
100W LED UFO High Bay Light Applications:
100W LED UFO High Bay Light Delivery & Service:
● Sample order delivery time is 10-15 working days
● Official order delivery time is 25-30 working days
● OEM and ODM service are available
● Customized box or laser Logo are available
● Sample for testing is available
● Warranty 5 years for whole lamp
● Requirements would be responded within 24 hours
100W LED UFO High Bay Light FAQ:
1. Q: How to contact us?
A: Please contact: ian@lyhsolar.com; Wechat or WhatsApp: +86 13510607649
2. Q: Can I get a sample for testing?
A: Sample for testing is available, please contact our sales for more details
3. Q: What's your production capacity?
A: Our production capacity is 3,000 pcs to 5,000 pcs per month
4. Q: Can I customized my package?
A: Yes, customized color box and outer carton is available
5. Q: Can I customized Logo on lamp?
A: Yes, Logo laser on lamp is available, please contact our sales for more details
6. Q: What is your trade terms?
A: Trade terms EXW, FOB Shenzhen, DDU or DDP are all available
7. Q: What is your payment terms?
A: Payment terms are T/T, L/C
8. Q: What is your delivery time for sample and official orders?
A: Generaly, sample delivery time is 5-7 working days, official orders delivery time is 25-30 working days
9. Q: What is the warranty terms?
A: LED high bay light warranty is 5 years
10. Q: Please give me a reason to choose your factory?
A: 1. Professional original manufacture, all products are original design and production.
2. Strict quality process to make sure the best quality products
3. Right products for customer with competitive price
4. Full service for customers and good supports for customers
